Model
ZAL-300

Item specifics

Air Processing Capacity
1〜500Nm³/min
Operating Pressure
0.6〜1.0MPa
Rated Air Inlet Temperature
≤50℃(Min 5℃)
Pressure Drop between Air Inlet and Outlet
≤0.02MPa
Environmental Temperature:
≤45℃
Filter Element
Adopt the filter material imported from DH Company
Service Life
≥8,000h

Review

Description

The precision filter is mainly composed of the upper cylinder, lower cylinder, filter element module, automatic pollutant discharge valve and instrument. The compressed air containing oil, water and solid particles enters the container from the filter inlet, and passes through the cylinder-shaped filter element from outside to inside. Under the comprehensive action of direct interception, inertia collision, gravity sedimentation and other filtration mechanisms, the filter may further collect the tiny vaporific particles, to achieve gas-liquid and dust separation. The liquid drop and dust particles are discharged from the automatic pollutant discharge outlet.
Technical Indexes
Air Processing Capacity: 1~500Nm3/min
Operating Pressure: 0.6-1.0MPa (able to provide the product in the range of 1.0-3.0MPa according to the user requirements)
Air Inlet Temperature: 50°C (Min 5°C)
Environmental Temperature: ≤45°C
Filter Element: Adopt the filter material imported from DH Company
Service Life: ≥8,000h
Filtration Grade
Filtration Precision
Residual Oil Content
Initial Pressure Drop
C Grade
3μm
5ppm
≤0.007Mpa
T Grade
1μm
1ppm
≤0.01Mpa
A Grade
0.01μm
0.01ppm
≤0.013Mpa
H Grade
0.01μm
0.003ppm
≤0.013Mpa
Model
ZAL-1
ZAL-3
ZAL-6
ZAL-10
ZAL-15
ZAL-20
ZAL-30
ZAL-40
ZAL-60
ZAL-80
ZAL-100
ZAL-120
ZAL-150
ZAL-200
ZAL-250
ZAL-300
Air Flow Rate(Nm³/min)
1
3
6
10
15
20
30
40
60
80
100
120
150
200
250
300
Air Connect Pipe Diameter(DN)
25
32
40
50
65
65
80
100
125
150
150
150
200
200
250
300

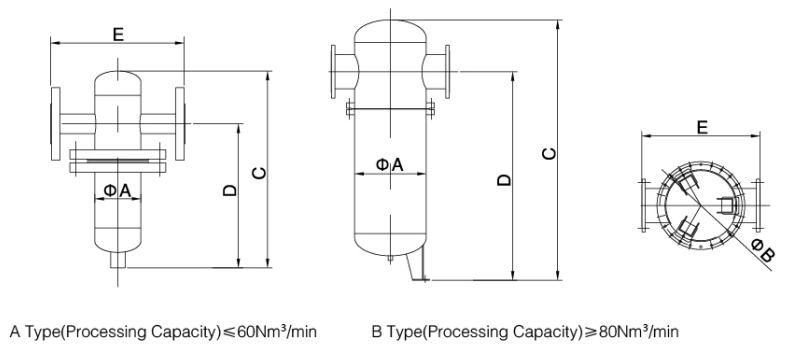

Tube Diameter Φ A(mm)
89
89
133
133
159
159
219
273
273
325
362
412
462
512
562
612
Foundation Bolt Diameter Φ B(mm)
-
-
-
-
-
-
-
-
-
3-Φ14
3-Φ14
3-Φ14
3-Φ18
3-Φ18
3-Φ18
3-Φ23
Total Height C(mm)
320
320
436
699
881
1194
963
1319
320
1549
1542
1584
1675
1752
1784
1689
Inlet & Outlet Height D(mm)
218
278
323
551
716
1019
773
1116
218
1139
1303
1303
1341
1346
1285
1278
Width E(mm)
260
260
309
309
319
339
459
513
260
625
662
712
762
812
902
952
Net Weight of the Equipment(kg)
19
25
30
53
53
62
72
86
19
150
190
220
240
265
290
320
